4G Ribbon

Name: 4G Ribbon
SKU: 4G_RIBBON
Price: 4.17 GBP
Availability: InStock

Replacement Hard Drive flex 4G iPods

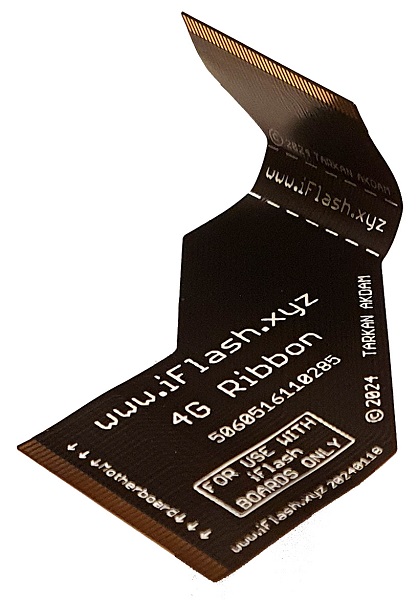

4G Ribbon as folded

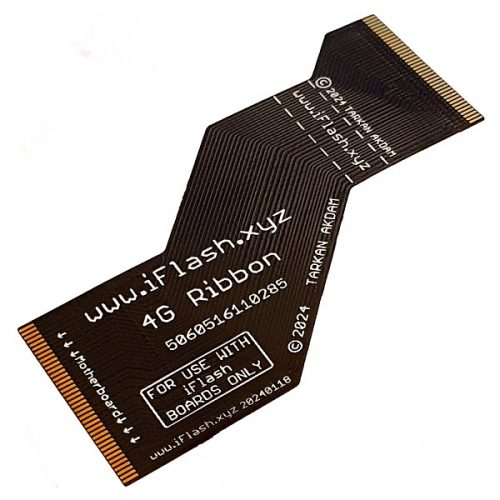

4G Ribbon Side

4G Ribbon Installed

This product replaces the old and aging Apple 4G (632-0259) Flex Ribbon and allows the direct install of our iFlash boards in the 4th Gen iPod Photo models.

Features

Designed and made by iFlash.xyz
Meets exact specifications for the ZIF connectors used in the iPod
Gold plated contacts
Flexible construction to reduce chances of cracking
Reduced stress on the iPod motherboard ZIF connector
Superior replacement for the original OEM HDD Ribbon
For use with 4G iPods and iFlash boards only

Compatibility

Only fits 4G iPods which use the 632-0259 Ribbon ( also marked as 632-0259-A )
These are generally the iPod Classic 4th Gen Photo 20 40 60 GB

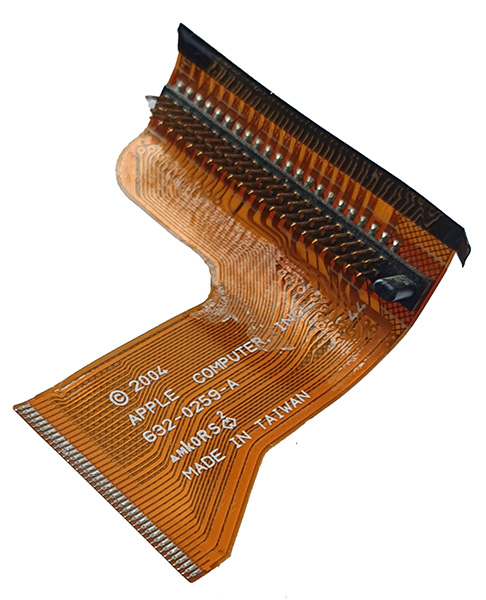

632-0259 Ribbon Flex

WARNING

We suggest opening iPod and confirming your iPod uses the 632-0259-A Ribbon before ordering

Installation

: Carefully pry open the iPod using suitable tools.

: Pry and release the headphone/hold switch connection.

: iPod Opened and Ready to start.

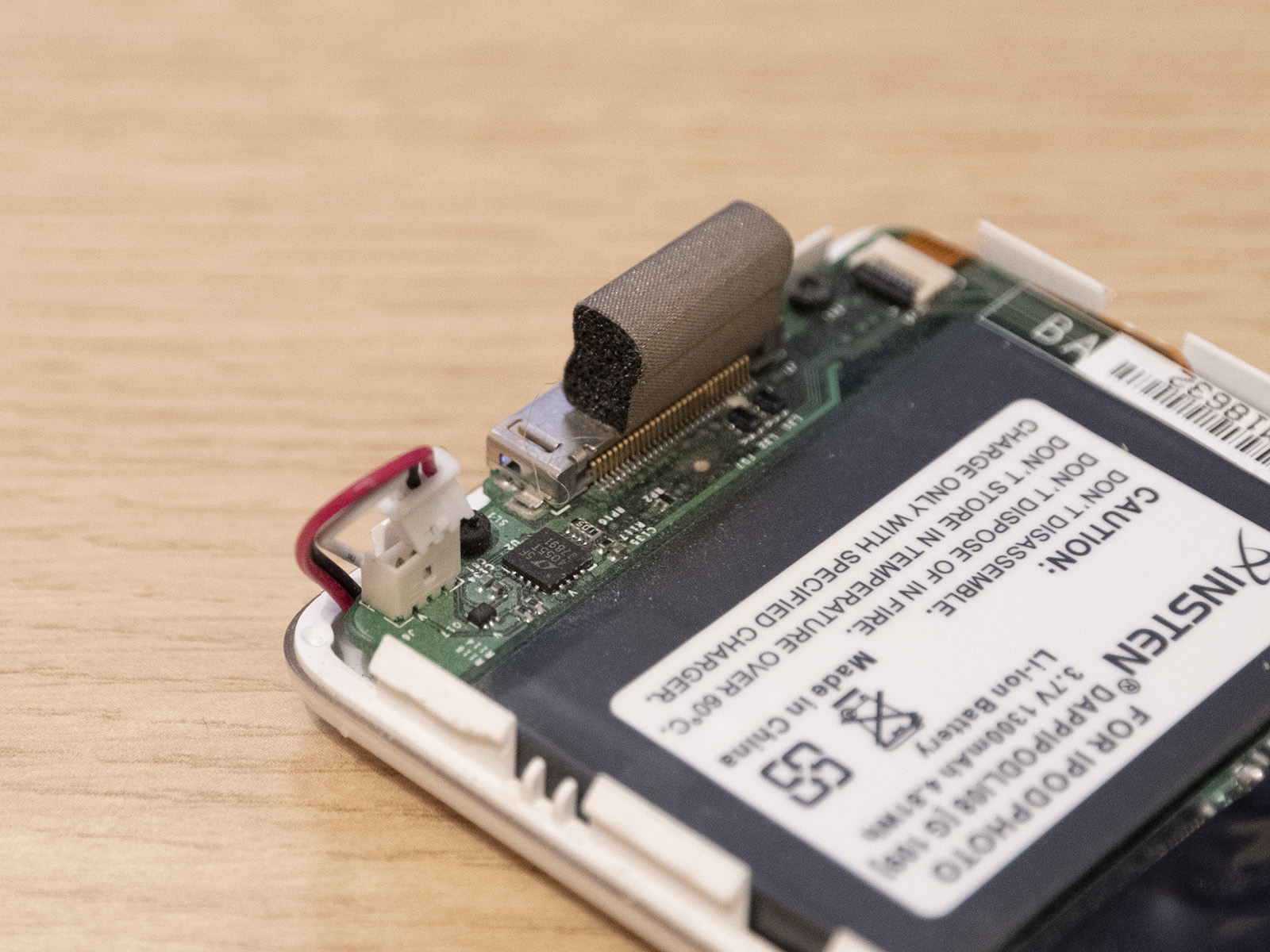

: Disconnect the Battery by pulling out the connector.

: Carefully remove the HDD from the HDD connector. Do not put too much stress on the HDD connector.

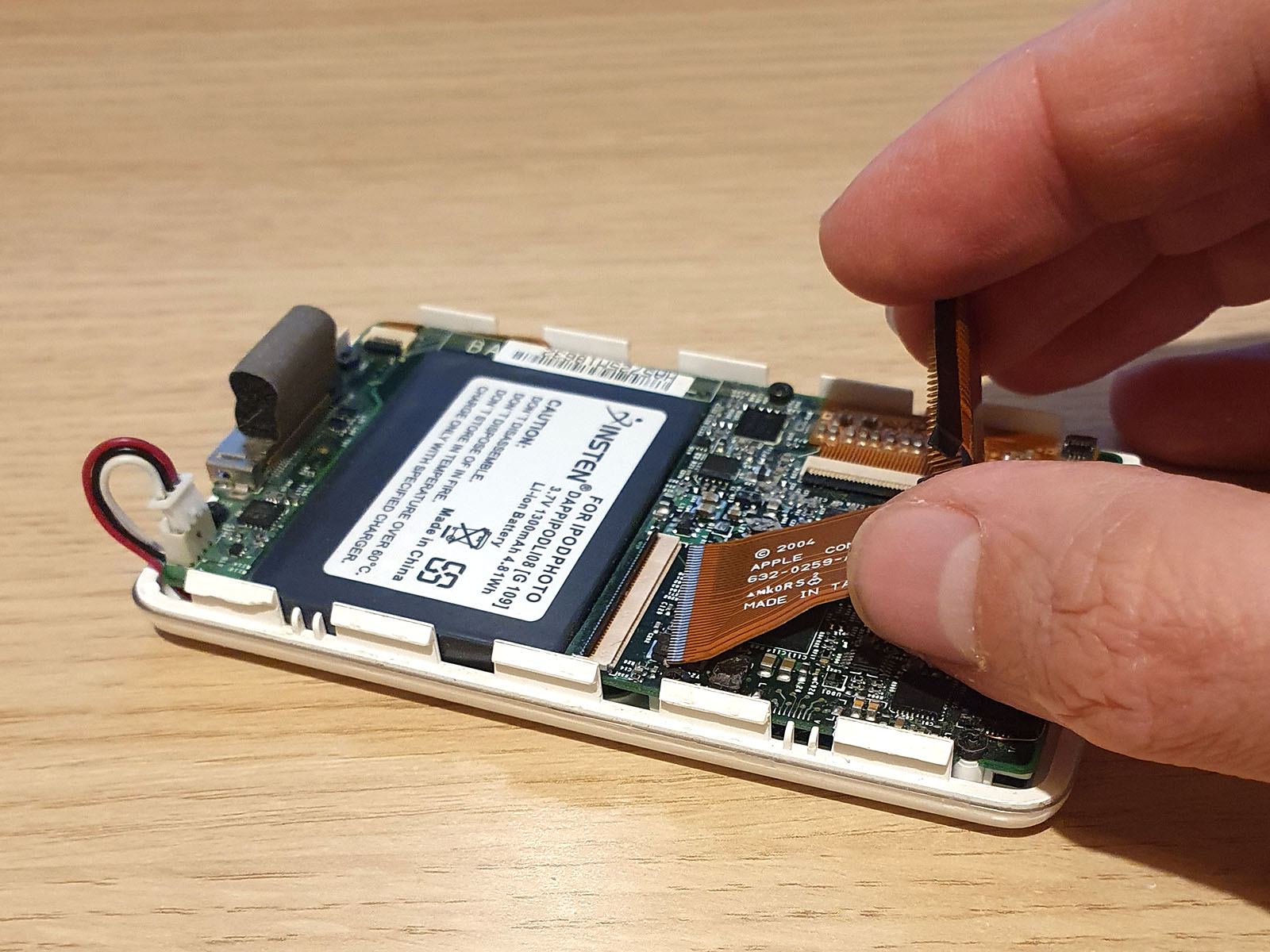

: Lift black bar on the ZIF connector and remove HDD ribbon

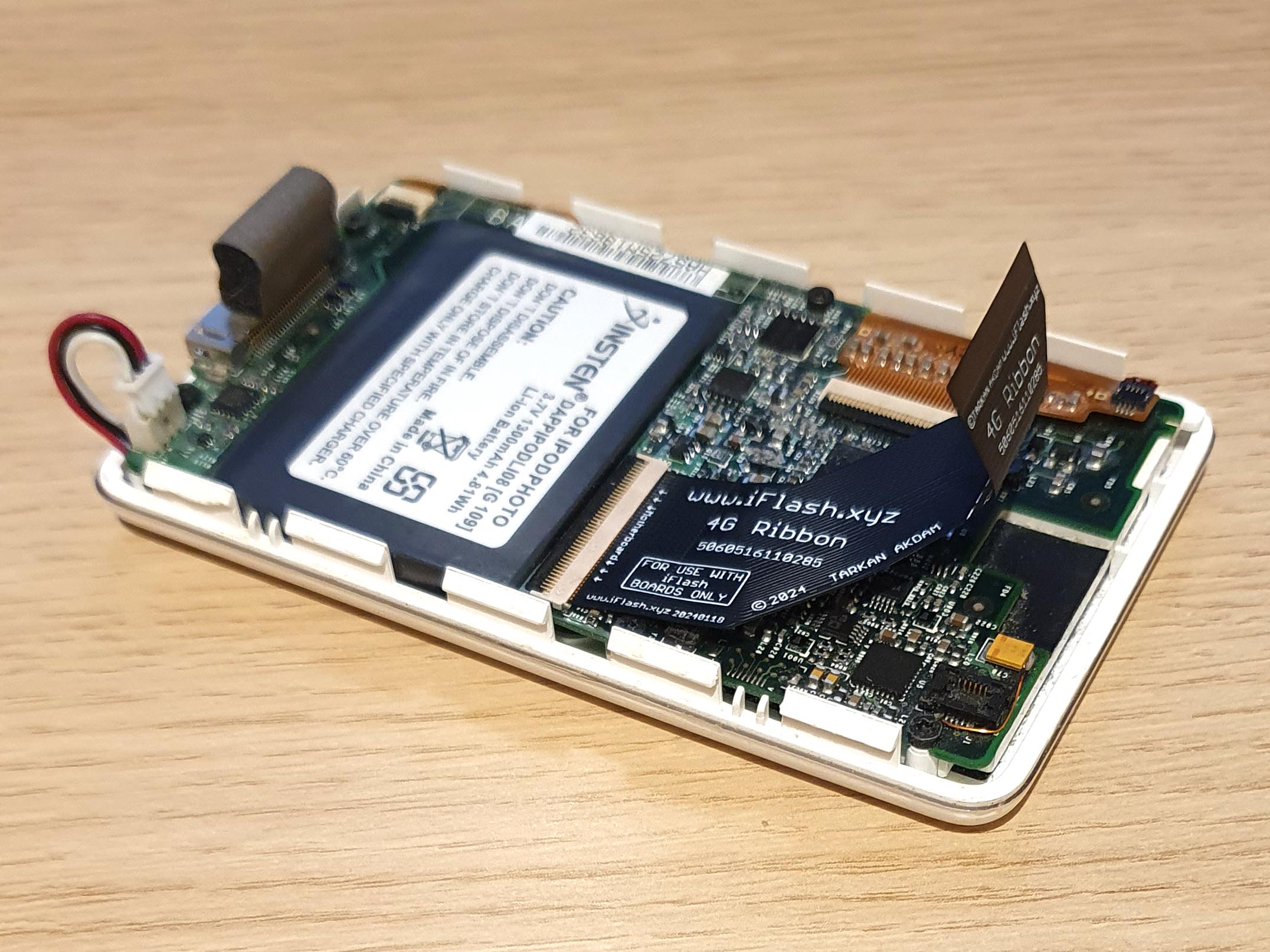

: bend the ribbon at the dashed lines as shown, and install on to iPod motherboard, lock down the black bar.

: Install iFlash board on to the ribbon as shown, the iFlash ZIF connector should ALWAYS FACE OUT for all models

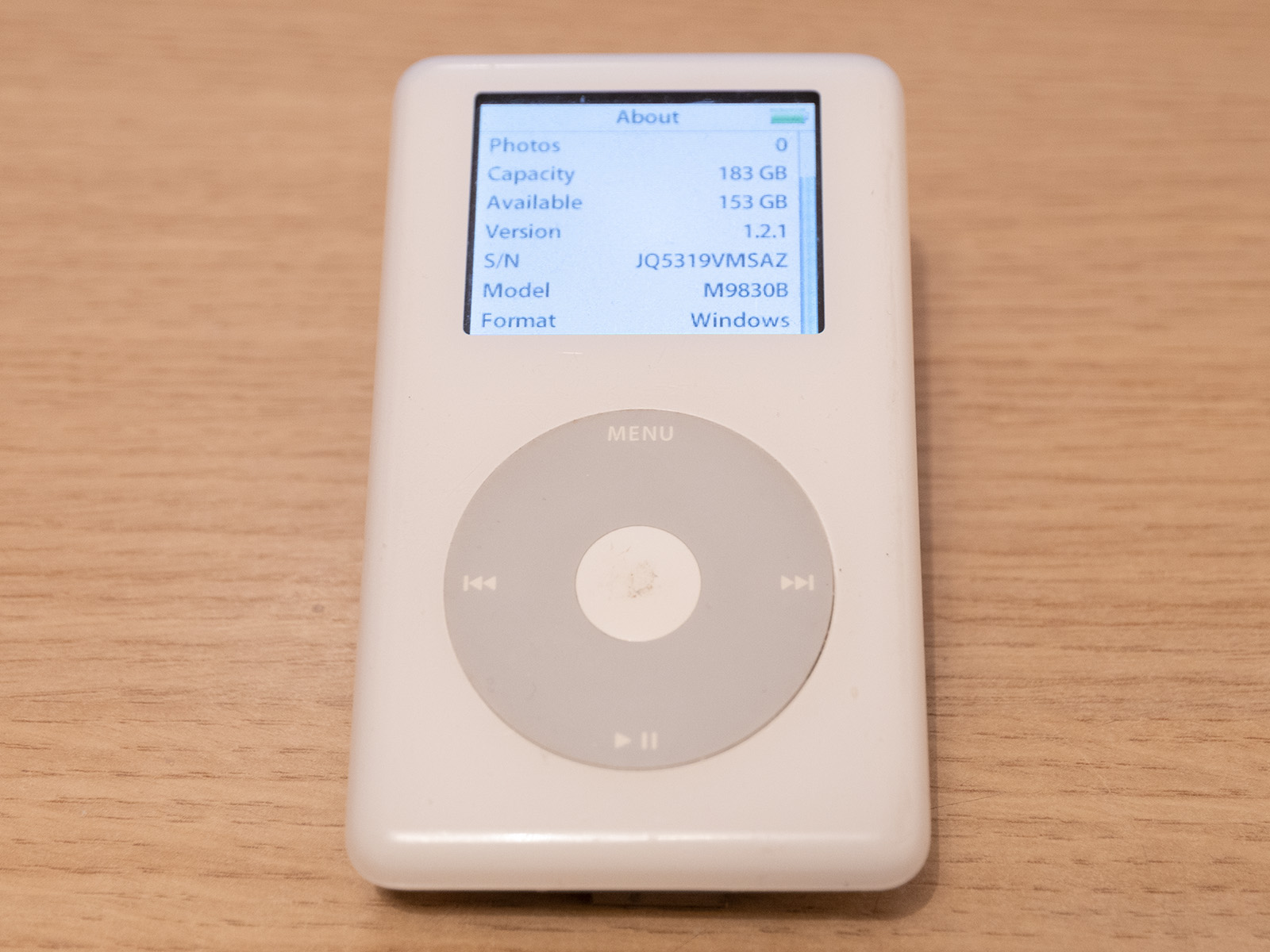

: Restored and Sync’d. Ready to use.
